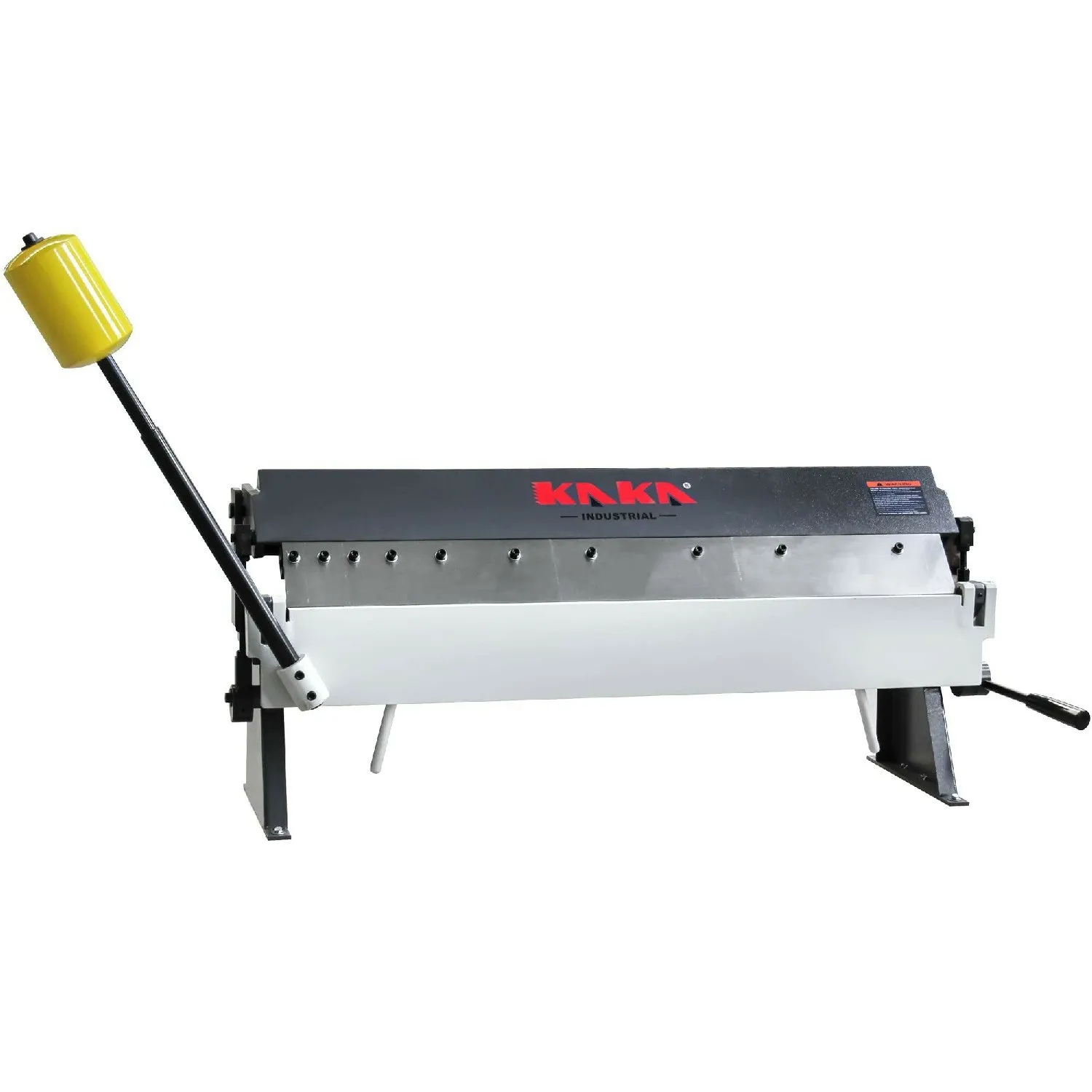

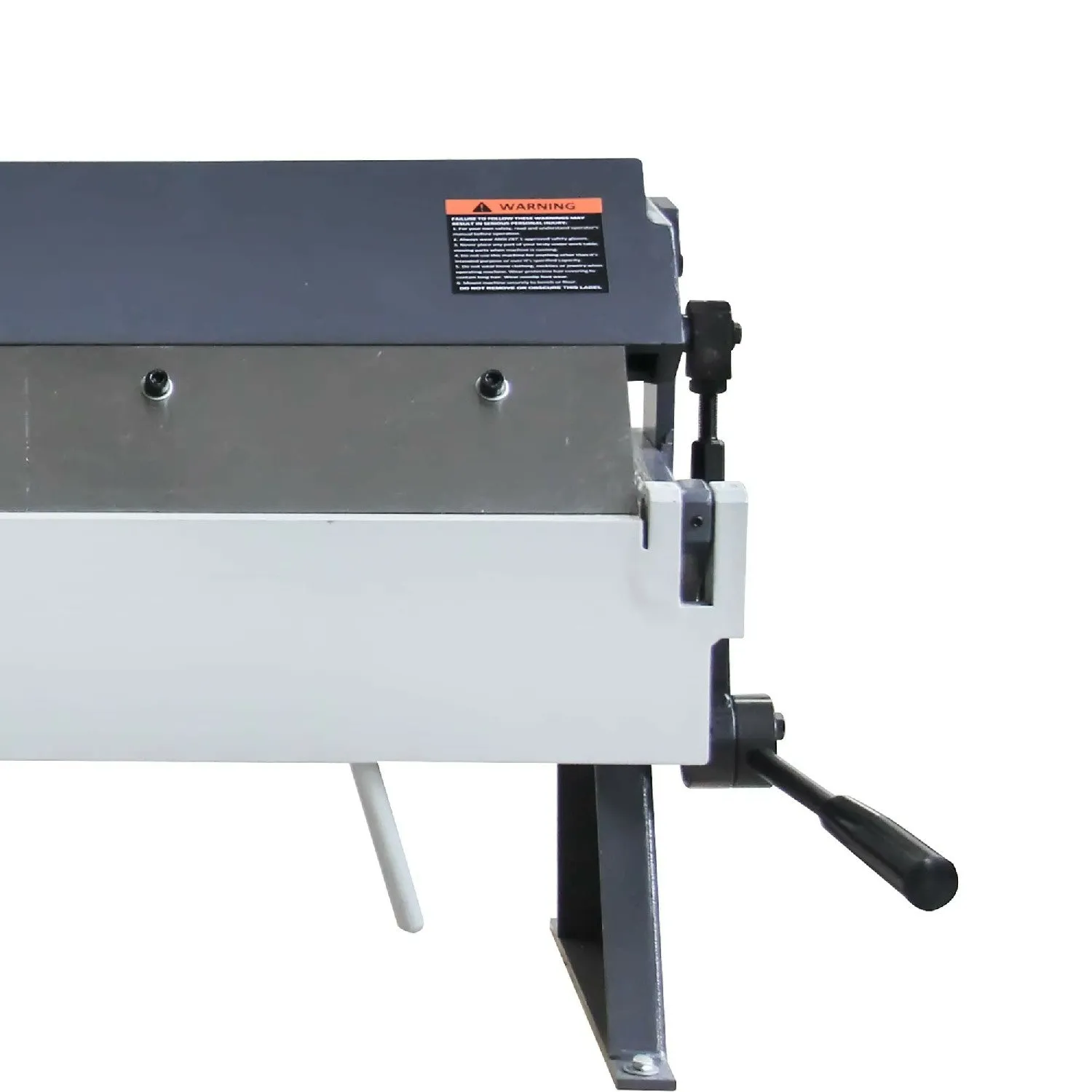

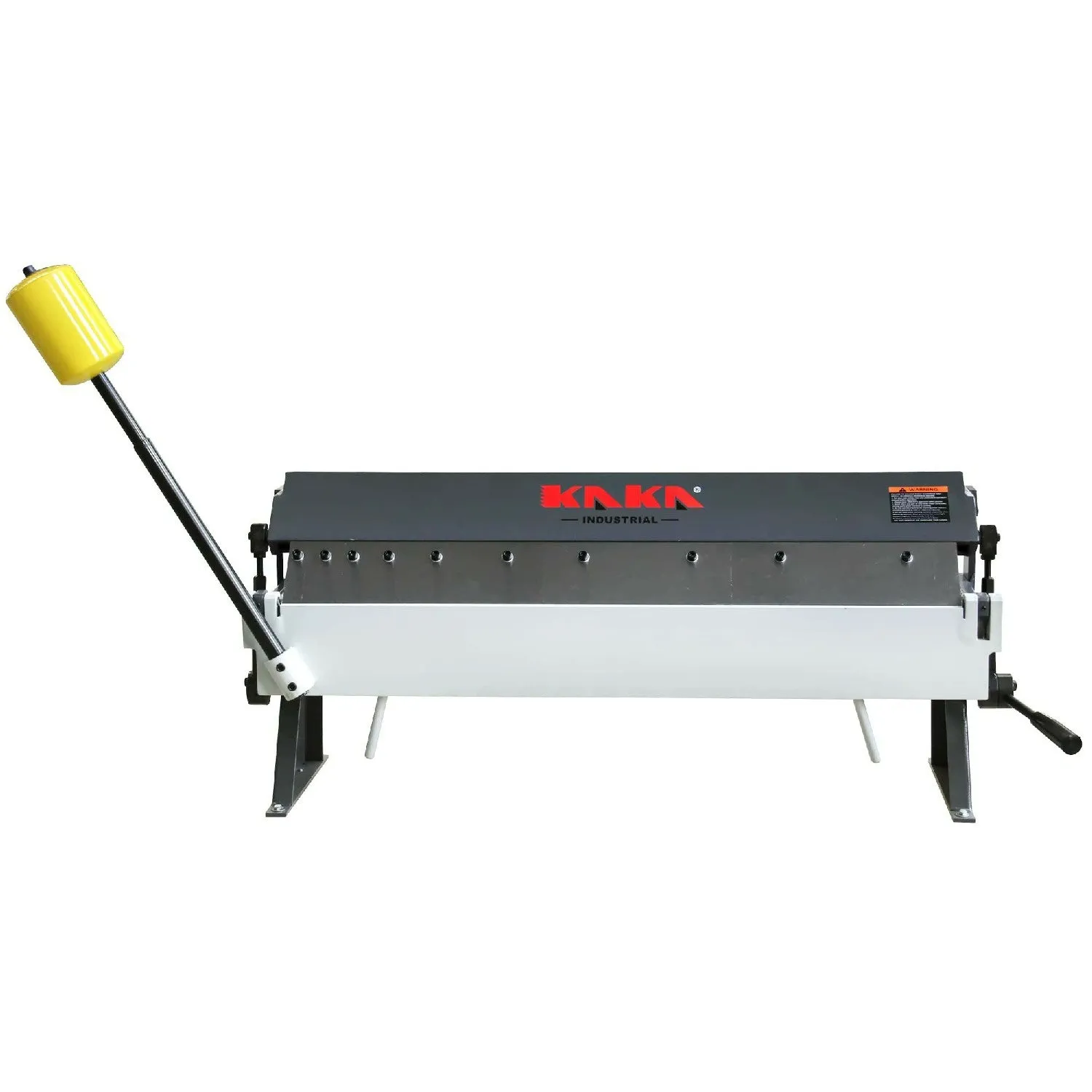

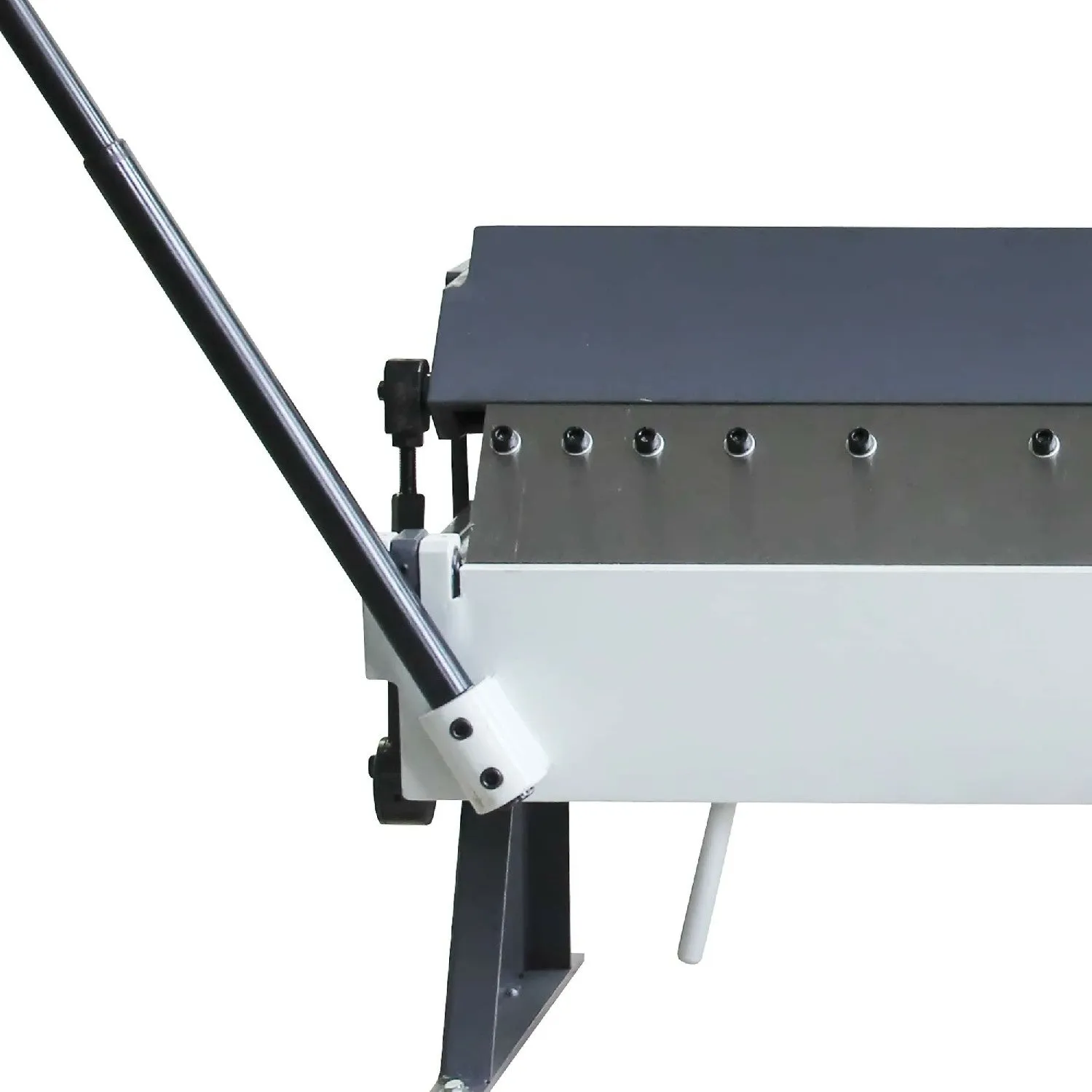

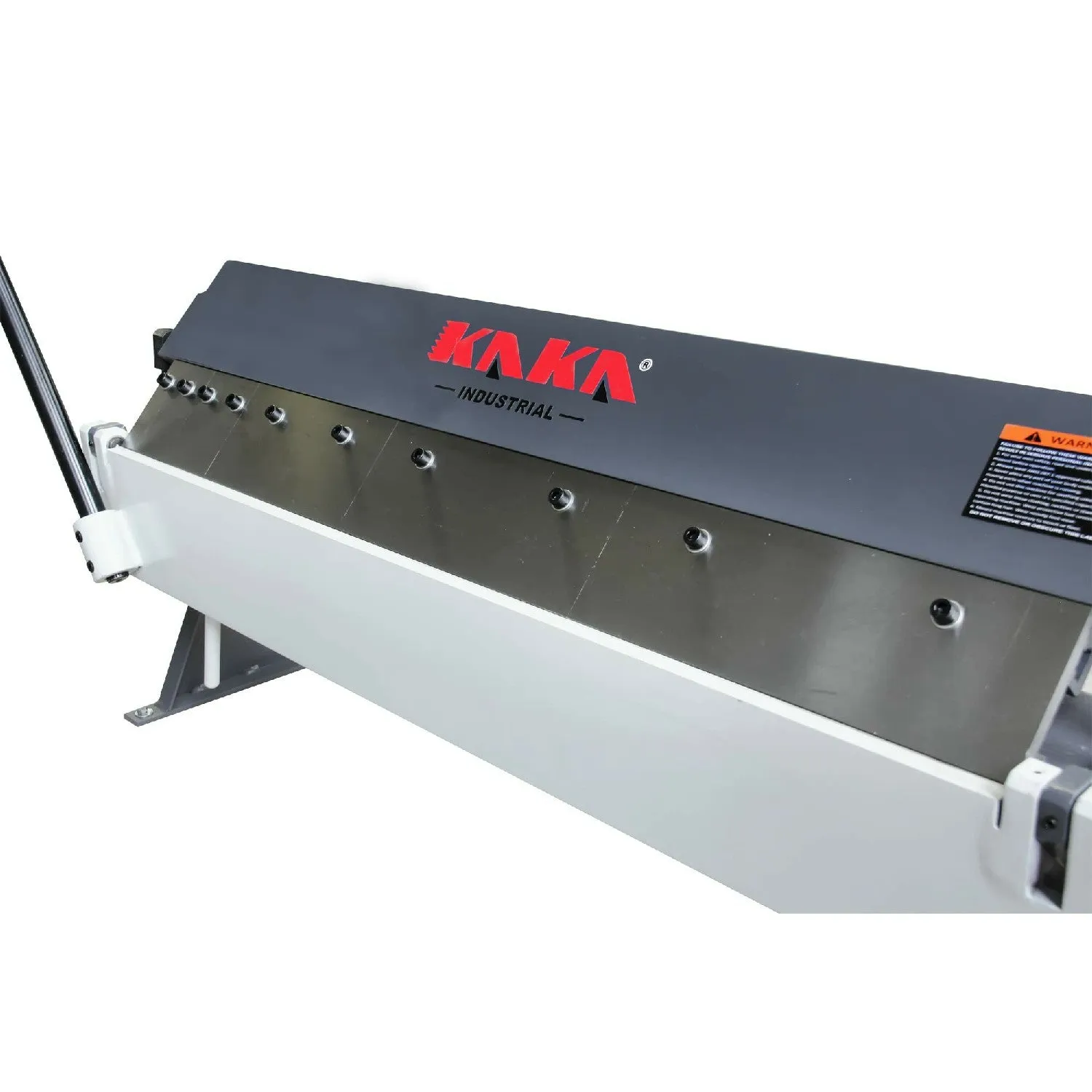

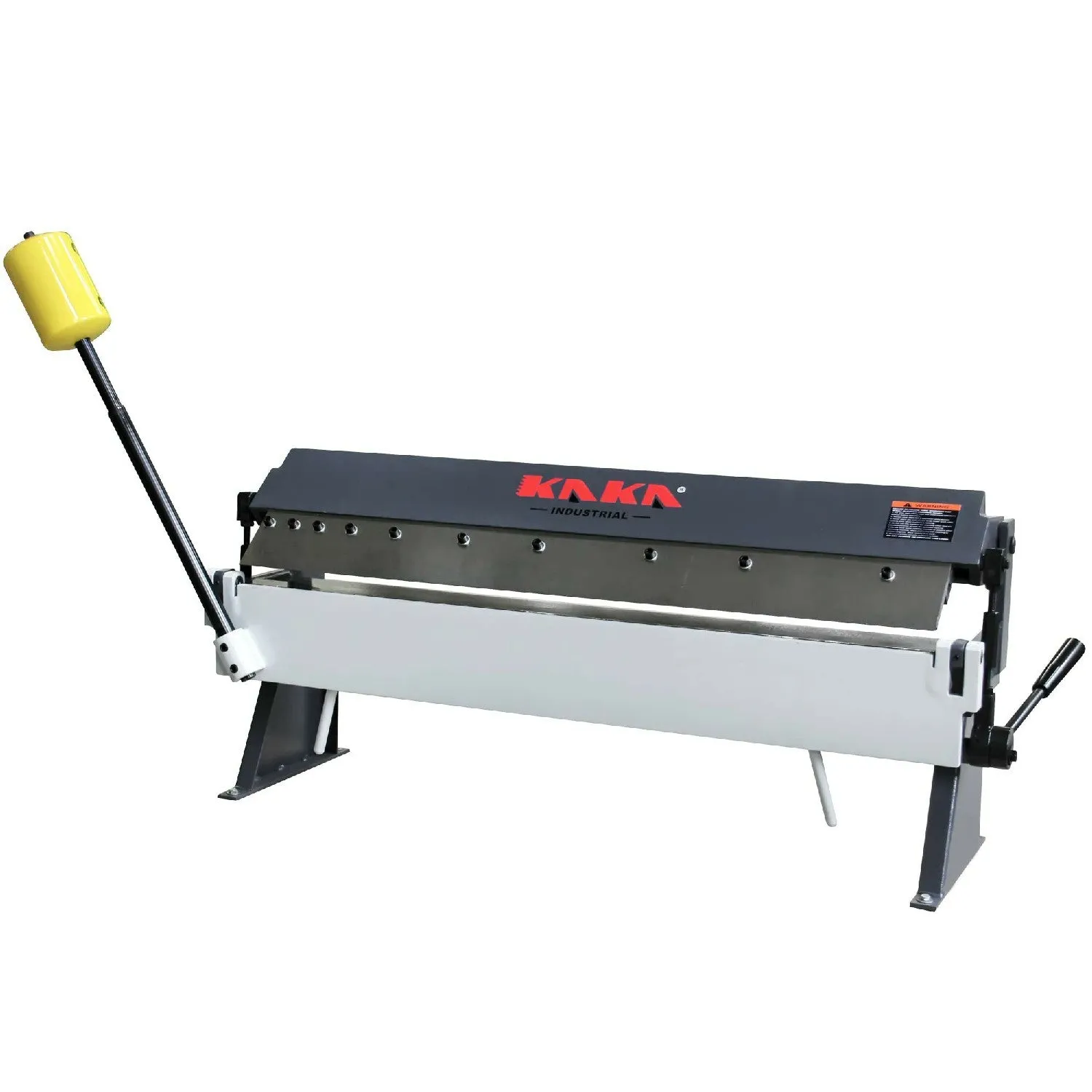

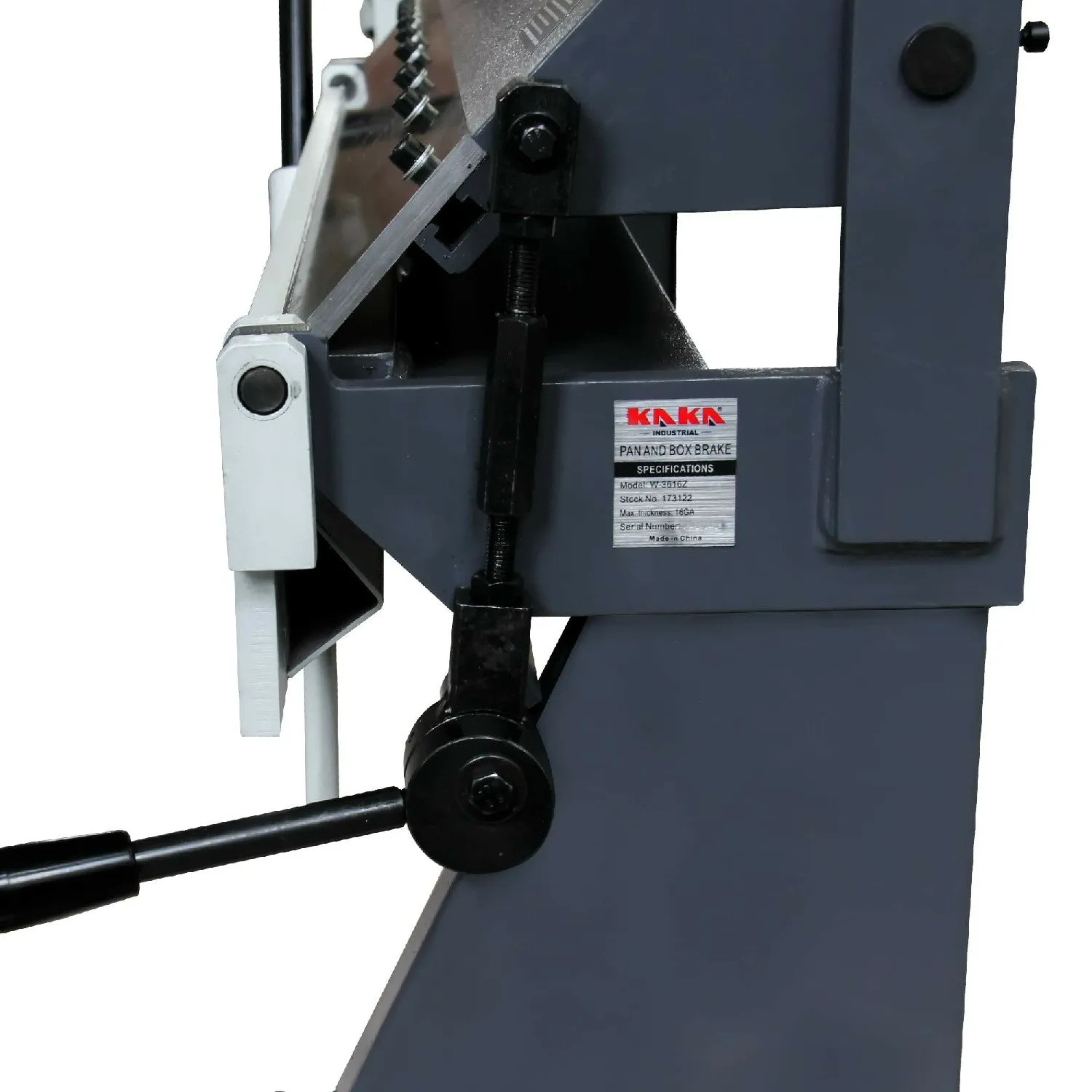

KANG Industrial Manual Pan Box Brake W-3616Z
1.5x915 mm mild steel capacity
Features
Max. bend 1.5 mm thick plate at the full width of 915 mm
Bending angle up to 135°
6 different size fingers to make various sizes of boxes and pans
Easily adjust clamping for different thick plate
Finger size is 25.4mm, 50.8mm, 76.2mm, 254 mm and 305 mm
Fingers setback adjustment to increase bending radius for thicker materials
Specifications
| SKU | 173122 |
| Model | W-3616Z |
| Bending length | 915 mm |
| Bending width | 1.5 mm |
| Bending angle | 0-135° |
| Packing size | 117x40x58 cm |
| N.W./G.W. | 106/123 kg |
